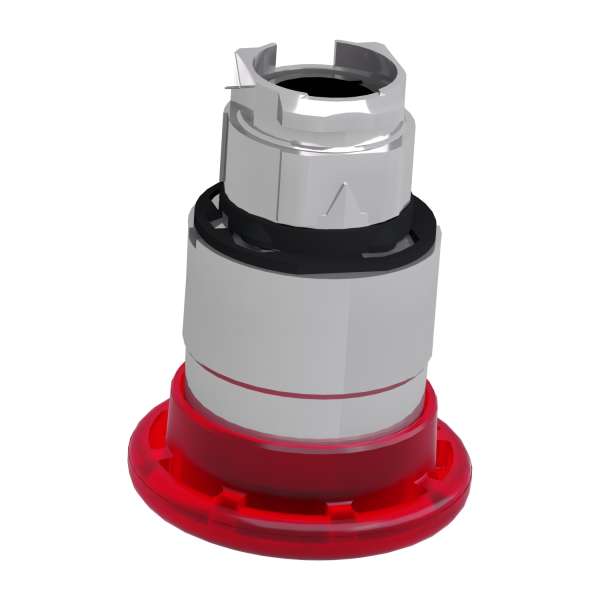

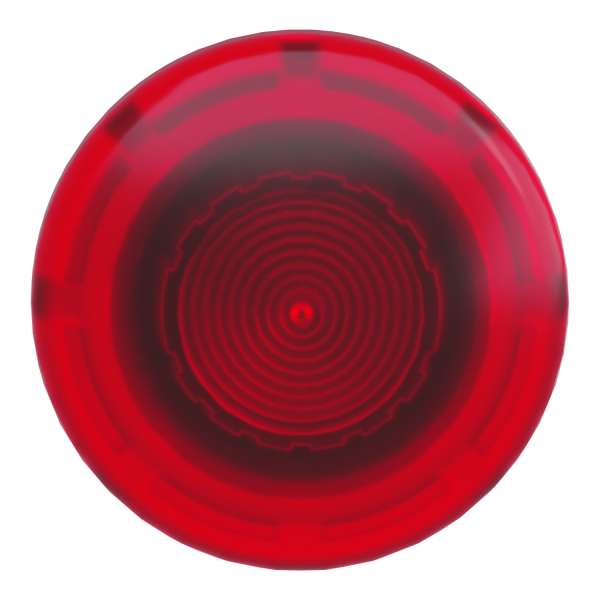

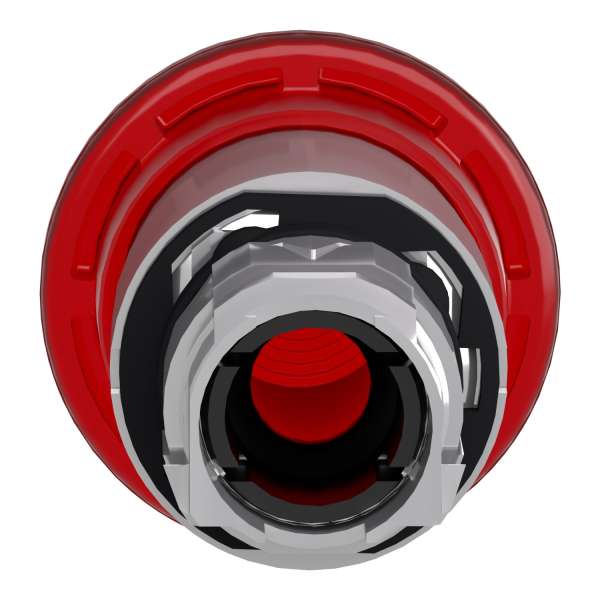

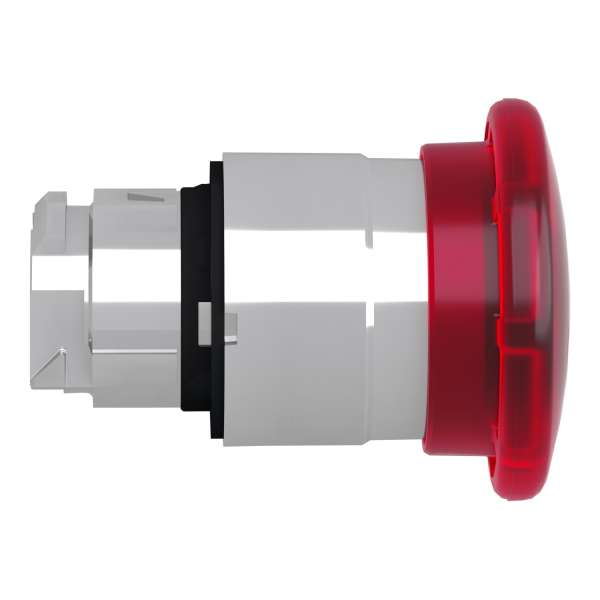

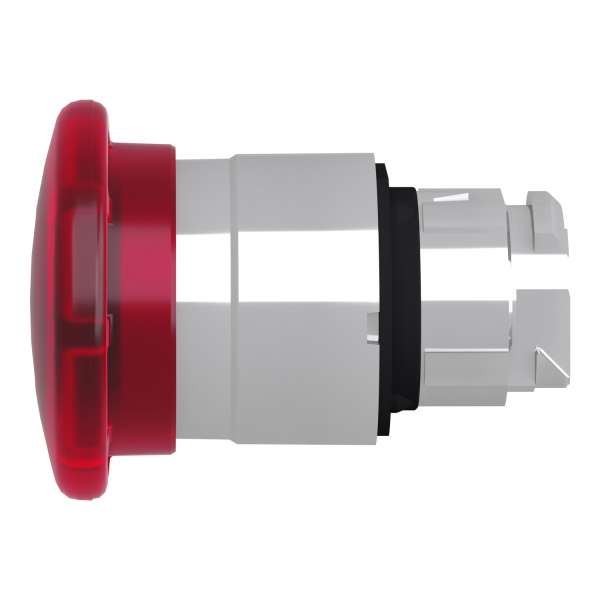

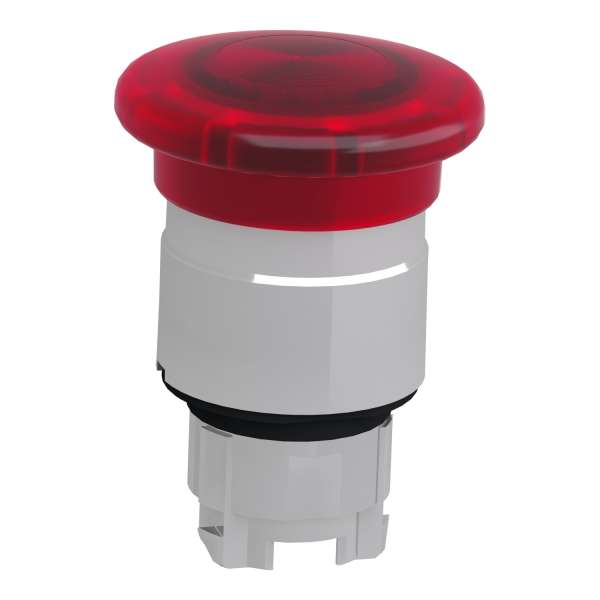

ZB4BW443
red Ø40 illum mushroom pushbutton head Ø22 spring return for integral LED
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Head for illuminated push-button |
| Device short name | ZB4 |
| Product compatibility | Universal LED |
| Bezel material | Chromium plated metal |
| Head type | Standard |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Red mushroom Ø 40 mm, unmarked |
| Cap/operator or lens colour | Red |
| CAD overall width | 40 mm |
|---|---|
| CAD overall height | 40 mm |
| CAD overall depth | 53 mm |
| Product weight | 0.051 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Mechanical durability | 10000000 cycles |
| Electrical composition code | M1 for <6> M2 for <6> M6 for <2> M10 for <2> |
| Device presentation | Basic sub-assemblies |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Standards | JIS C8201-5-1 IEC 60947-1 IEC 60947-5-1 IEC 60947-5-5 CSA C22.2 No 14 UL 508 IEC 60947-5-4 JIS C8201-1 |
| Product certifications | BV CSA DNV LROS (Lloyds register of shipping) UL listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.3 cm |
| Package 1 Width | 4.4 cm |
| Package 1 Length | 8.8 cm |
| Package 1 Weight | 62.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.817 kg |
| Warranty | 18 months |
|---|
