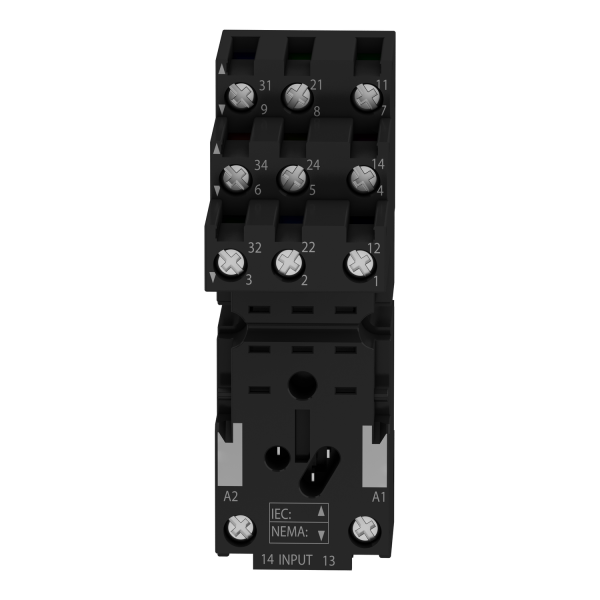

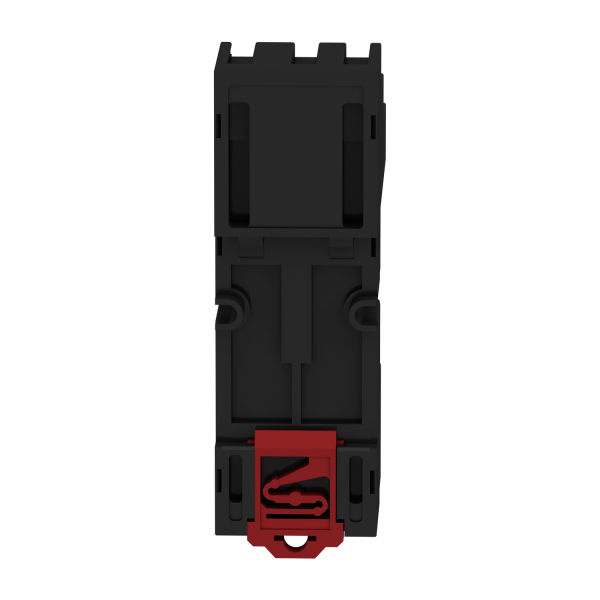

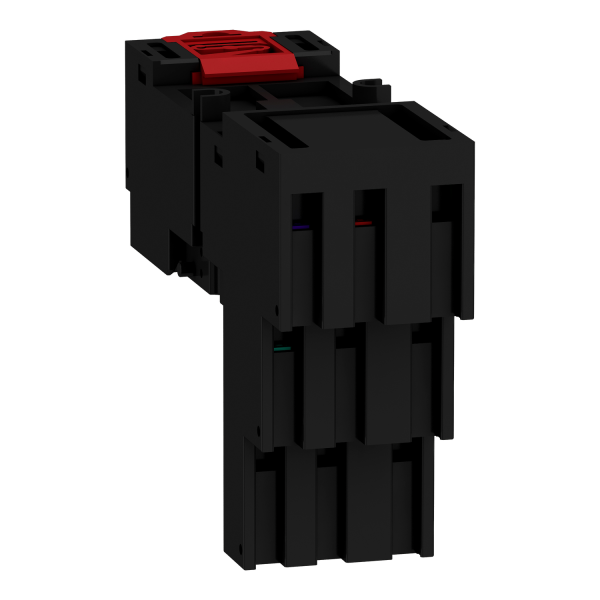

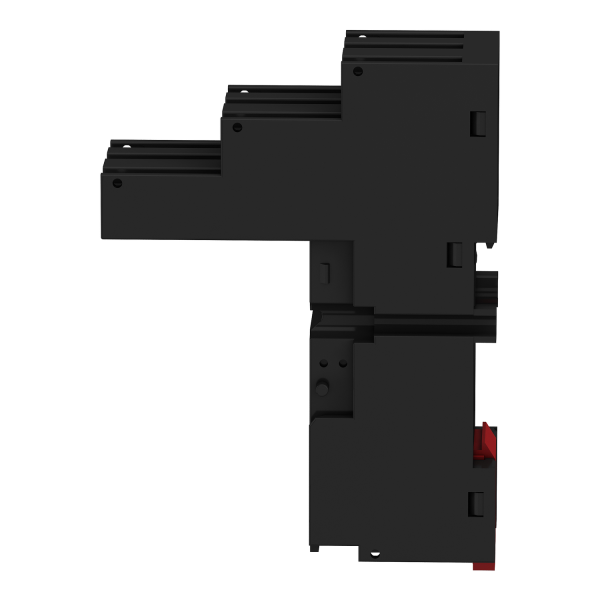

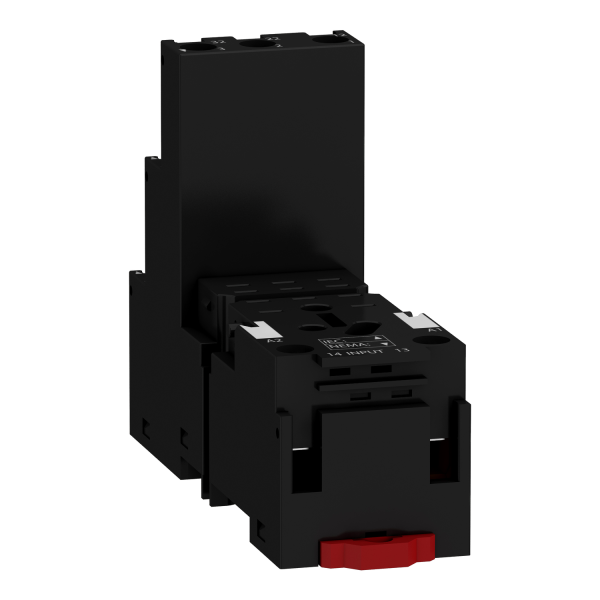

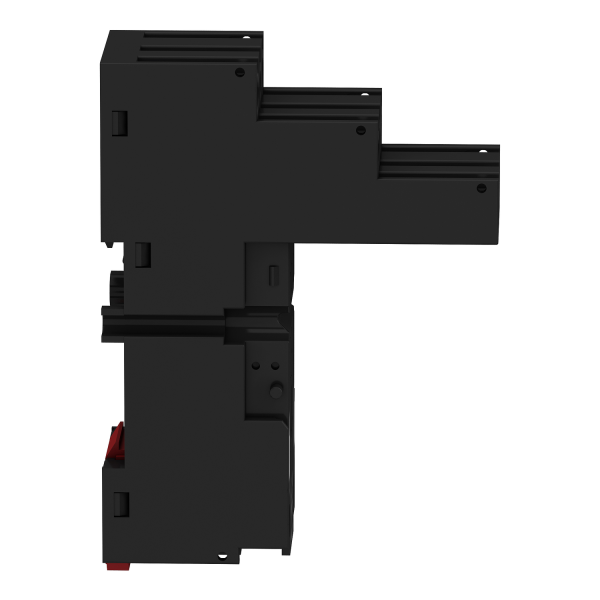

RXZE2S111M Harmony, Socket, for RXM3 relays, screw
Harmony, Socket, for RXM3 relays, screw connectors, separate contact
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Device short name | RXZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RXM with 3 C/O contact |
| Contacts type and composition | 3 C/O |
| [Ith] conventional free air thermal current | 10 A |
| Shape of pin | Flat |
|---|---|
| [Ue] rated operational voltage | < 250> < 300> |
| Contact terminal arrangement | Separate |
| Connections - terminals | Screw connectors, 1 x 0.34...1 x 2.5 mm⊃2; (AWG 22...AWG 14) flexible with cable end Screw connectors, 2 x 0.34...2 x 1 mm⊃2; (AWG 22...AWG 17) flexible with cable end Screw connectors, 1 x 0.5...1 x 2.5 mm⊃2; (AWG 20...AWG 14) solid without cable end Screw connectors, 2 x 0.5...2 x 1.5 mm⊃2; (AWG 20...AWG 16) solid without cable end |
| Tightening torque | < 1> |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 27 mm |
| Net weight | 0.058 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| product certifications | UL Lloyd's CSA |
| marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.7 cm |
| Package 1 Width | 6.1 cm |
| Package 1 Length | 8.2 cm |
| Package 1 Weight | 61 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 11.6 cm |
| Package 2 Width | 6.8 cm |
| Package 2 Length | 14 cm |
| Package 2 Weight | 624 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 10.7 kg |
| Warranty | 18 months |
|---|
