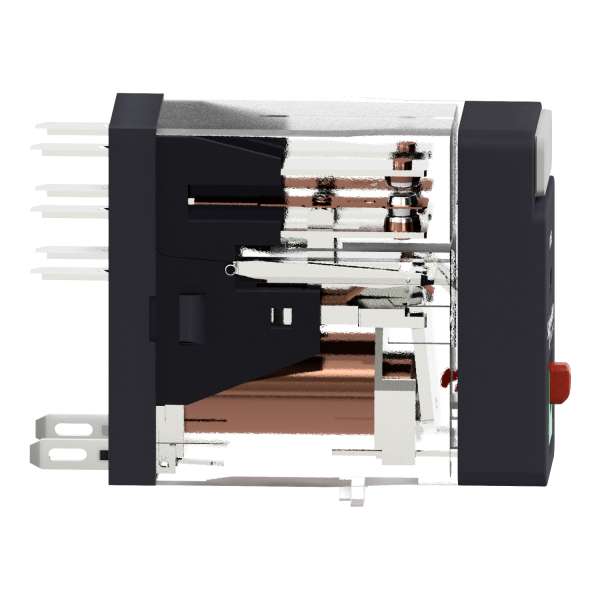

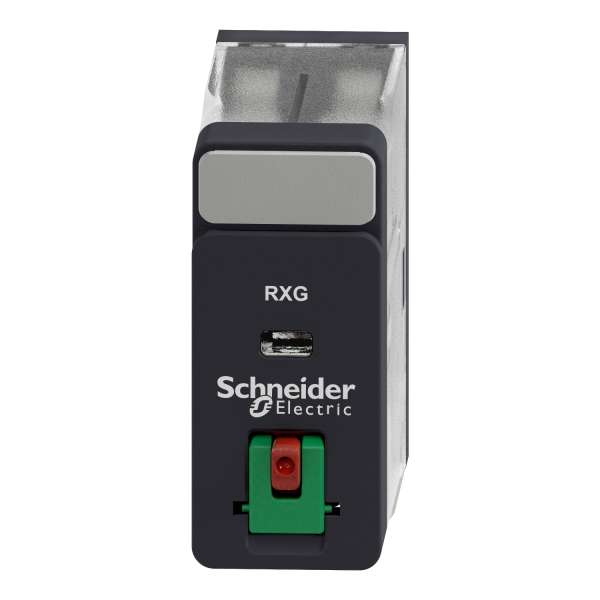

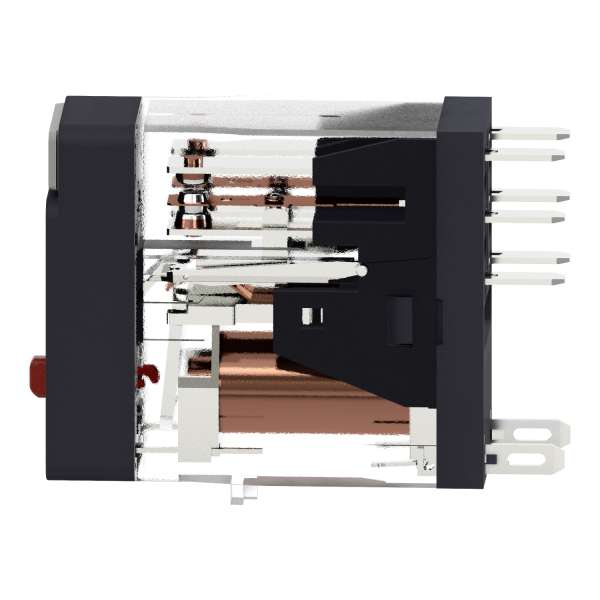

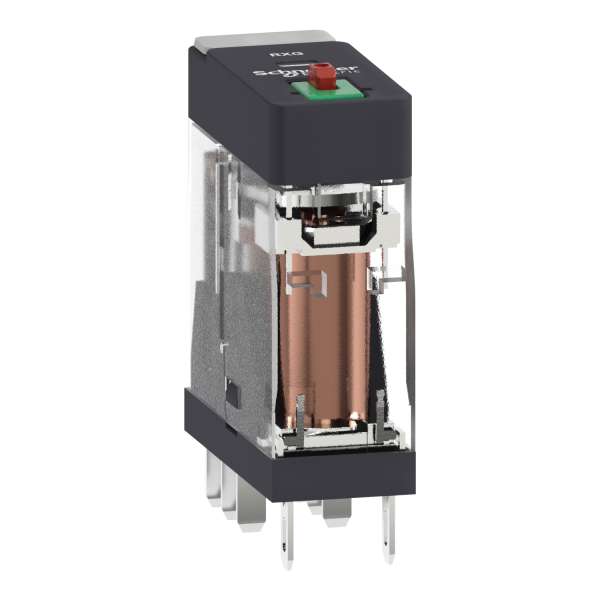

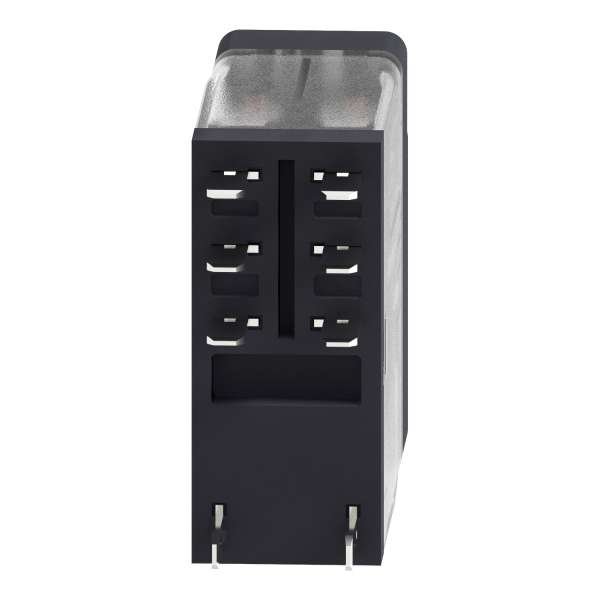

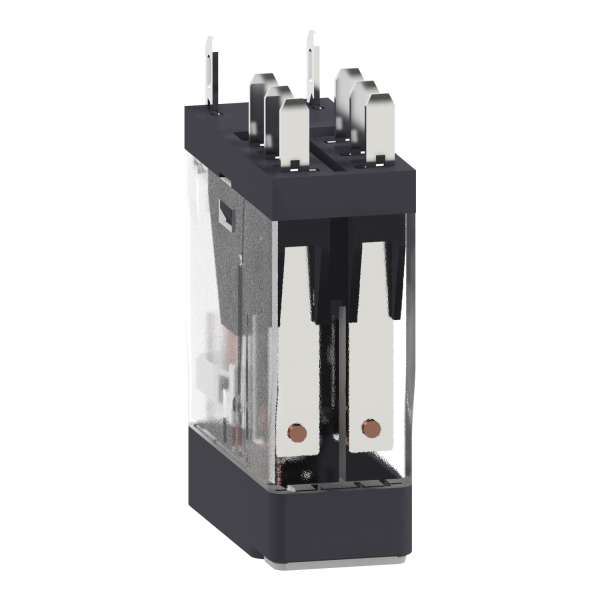

RXG21B7 Schneider Electric interface plug-in relay - HARMONY RXG
interface plug-in relay - HARMONY RXG - 2 C/O standard - 24V AC - 5A - with LTB
| range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Interface relay |
| product or component type | Plug-in relay |
| Device short name | RXG |
| Contacts type and composition | 2 C/O |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| Local signalling | Flag |
| Status LED | Without |
|---|---|
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL 5 A at 30 V (DC) conforming to IEC 5 A at 250 V (AC) conforming to IEC 5 A at 250 V (AC) conforming to UL |
| Electrical durability | 100000 cycles for NO resistive load at 55 °C 100000 cycles for NC resistive load at 55 °C |
| Coil resistance | 260 Ohm +/- 10 % |
| Shock resistance | 20 gn in operation 100 gn not in operation |
| Mounting position | Any position |
| Average consumption in VA | 0.82 VA 60 Hz |
| Control circuit voltage limits | 0.8...1.1 Uc AC |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Colour of cover | Standard |
| Drop-out voltage threshold | >= 0.3 Uc AC |
| Load current | 5 A at 250 V AC |
| Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Maximum switching capacity | 1250 VA |
| Control type | Lockable test button |
| Torque value | 0.8 N.m |
| Contact resistance | 100 mOhm |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Electrical insulation class | Class F |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating time | 20 ms |
| Reset time | 20 ms |
| Overvoltage category | III |
| Maximum switching voltage | 250 V AC 30 V DC |
| Protection category | RT I |
| Operating rate | <= 1800 cycles/hour under load <= 18000 cycles/hour no-load |
| Pollution degree | 2 |
| Utilisation coefficient | 20 % |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| Dielectric strength | 1000 V AC between contacts with micro disconnection 5000 V AC between coil and contact with reinforced insulation 3000 V AC between poles with basic insulation |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| net weight | 0.02 kg |
| Standards | UL 508 IEC 61810-1 CSA C22.2 No 14 |
|---|---|
| Product certifications | CSA UL EAC CE DNV-GL |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP40 |
| Relative humidity | 10…85 % |
| Vibration resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.016 cm |
| Package 1 Width | 3.302 cm |
| Package 1 Length | 4.318 cm |
| Package 1 Weight | 18.144 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.5 cm |
| Package 2 Width | 8.3 cm |
| Package 2 Length | 9.1 cm |
| Package 2 Weight | 221 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 15 cm |
| Package 3 Width | 15 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 4.79 kg |
